Grey Waste

Whale Gulper pumps for grey waste lead the way in durability and non-clog valve technology. Built to provide a true “fit and forget” system, our range includes pre-assembled kits that include all you need to get up and running.

ELECTRIC GREY WASTE PUMPS

Ensure the waste water from your showers and sinks flows freely with our electric grey waste pumps.

Manifold IC

Part nos: WM8284 12V, WM8484 24V

With built-in intelligent control, this automatic grey waste system manages waste from two drains, ensuring the pump operates only when required.

  • Fast drainage - high capacity up to 19L (5 US Gals) per minute with built in time delay

  • Fully automatic - Two-Way Manifold IC senses when water needs to be pumped

  • Saves space, fitting where sumps or waste tanks are too large

  • Easy to install and service free with no moving parts to clog or burn

View product details
More Features

  • 3 year warranty

  • CE certified Meets

  • ISO 10133, ISO 8846, IP45 Long life - self-priming, runs dry without damage, soft start to protect the pump

  • Low current controlled switching ensures no switch failure from high currents

  • Kit includes plug and play Gulper IC pump and Two-Way Manifold IC with 4m (13ft) of cable

Resources
Video
Gulley IC

Part nos: SG8284 12V, SG8484 24V

With built-in intelligent control, this automatic shower gulley waste system manages waste from a single gulley, ensuring the pump operates only when required.

  • Fast drainage - high capacity up to 19L (5 US Gals) per minute with built in time delay

  • Fully automatic - Gulley IC senses when water needs to be pumped

  • Compact single shower automatic gulley saves space by removing the need for gravity drainage

  • Easy to install and service free with no moving parts to clog or burn

View product details View spares
More Features

  • 3 year warranty

  • CE certifiedMeets ISO 10133, ISO 8846, IP45

  • Long life - self-priming, runs dry without damage, soft start to protect the pump

  • Low current controlled switching ensures no switch failure from high currents

  • Noise reduction at gulley Kit includes plug and play Gulper IC electric waste pump and compact Gulley IC with 4m (13ft) cable for easy installation

Resources
Video
Gulper 320

Part nos: BP2052 12V, BP2054 24V

Gulper valve technology handles shower waste from multiple drains.

  • High capacity and fast draining, with no filters or clogging.

  • Save space – using a single pump for multiple drains with a grey waste tank

  • Low current draw means longer battery life

  • Multi directional (360°) head for easy installation

  • Easy maintenance non-choke valve, no filter to clean or block

View product details View spares
More Features

  • 3 year warranty

  • CE certified

  • Meets ISO 8849, ISO 15083, ISO 10133, ISO 8846, ABYC H-22, IP45

Resources
Video

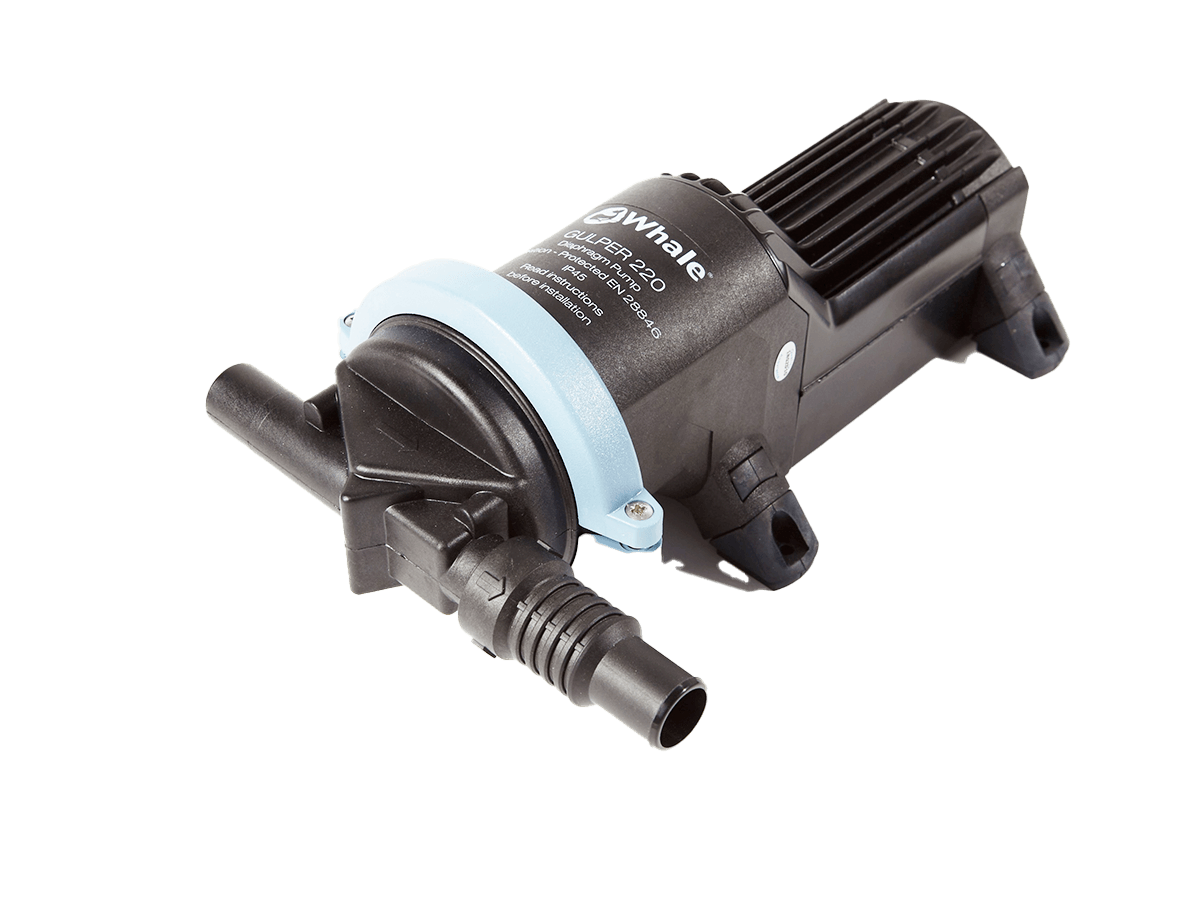

Gulper 220

Part nos: BP1552 12V, BP1554 24V

Gulper 220 reliably pumps shower waste, including hair and gels. Get virtually unblockable valves with no filter to clean.

  • Reliable operation – self-priming up to 3m (10ft)

  • Double-outlet valve ensures continuous flow, will run dry without damage and pump a mixture of air and water

  • Multi-directional head for ease of installation

  • Low power consumption

View product details View spares
More Features

  • Self-priming and runs dry without damage

  • 2 year warranty

  • CE certified

  • Meets ISO 8849, ISO 15083, ISO 10133, ISO 8846, ABYC H-22, IP45

Resources
Video

GREY WASTE TANKS

Get hassle-free management of shower and sink waste with Whale's grey waste tanks.

Grey Waste Tank Range

Our grey waste tanks feature a unique ‘Triple Seal’ lid to isolate electronics from the harsh grey waste environment, delivering superior durability.

  • Capacity - available in 8L (2.1 US Gals), 16L (4.2 US Gals), 20L (5.3 US Gals) options

  • Integrated sensors for automatic pump control - solid state switch protected against water ingress

  • Easy wiring - connect any 12V or 24V d.c. pump system (up to 20 amp with no relay required)

  • Double switch models - second sensor can be wired to a high-level alarm or second pump

  • Pumps can be top- or side-mounted on 20L tank

View product details View spares
More Features

  • 3 year warranty

  • CE certified

  • Meets ISO 10133, ISO 8846

  • Ports shaped for drilling accuracy (8L and 20L tanks only)

Resources
Video

GREY WASTE TANKS

Get hassle-free management of shower and sink waste with Whale’s grey waste tanks.

View accessories

Product support videos

Explore our in-depth product support and service videos.

Grey Waste FAQs

Should a non-return valve be fitted after the pump?

A non-return (tricuspid) valve is supplied with the pump and sits on its discharge outlet.

What temperatures can be used with the pump?

Operation Temp: Water temp: 0 – 50°C

Should a filter be fitted ahead of the pump?

There are no need for filters, which can clog.

Why are some pumps yellow and some blue?

A yellow colour denotes a sensor incorporated into the pump to allow for automatic function. Blue pumps require additional switches.

Will an AK8050 service kit cover Henderson MKIII, MKIV & MKV pumps?

The diaphragm contained in service kit AK850 will replace the one in a Henderson MK III, IV or V.

Will IC accessories work with a Gulper 220 or 320?

IC accessories are only compatible with Gulper IC pumps.
